当前位置：首页 » 欧美进口ag九游会登陆j9入口 » ECSag九游会登陆j9入口 » HCMOS振荡器,ECS石英ag九游会登陆j9入口,物联网ag九游会登陆j9入口,2520有源贴片,ECS-2520S18-260-FN-TR

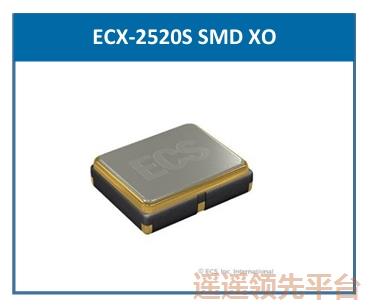

HCMOS振荡器,ECS石英ag九游会登陆j9入口,物联网ag九游会登陆j9入口,2520有源贴片,ECS-2520S18-260-FN-TR
频率：26MHz
尺寸：2.50mm x 2.00mm
| Part Series 型号 | ECS-2520S |
| Original model 原厂编码 | ECS-2520S18-260-FN-TR |
| Product Category 产品系列 | SPXOag九游会登陆j9入口 |
| Manufacturer 品牌 | ECS石英ag九游会登陆j9入口 |
| Frequency 频率 | 26MHz |
| Supply Voltage 电压 | 1.8V |
| Output Type 输出方式 | HCMOS |
| Frequency Stability 频率稳定性 | ±10ppm |
| Package Size 包装尺寸 | 2.50mm x 2.00mm |
订购热线：13380314981
HCMOS振荡器,ECS石英ag九游会登陆j9入口,物联网ag九游会登陆j9入口,2520有源贴片,ECS-2520S18-260-FN-TR 详细参数
HCMOS振荡器,ECS石英ag九游会登陆j9入口,物联网ag九游会登陆j9入口,2520有源贴片,ECS-2520S18-260-FN-TR 相关产品
| Part Series 型号 | ECS-2520S |
| Original model 原厂编码 | ECS-2520S18-260-FN-TR |
| Product Category 产品系列 | SPXOag九游会登陆j9入口 |
| Manufacturer 品牌 | ECSag九游会登陆j9入口 |
| Frequency 频率 | 26MHz |
| Supply Voltage 电压 | 1.8V |
| Output Type 输出方式 | HCMOS |
| Frequency Stability 频率稳定性 | ±10ppm |
| Package Size 包装尺寸 | 2.50mm x 2.00mm |
| Termination 脚位 | 4 Pad |
| Package Height 厚度 | 1.00mm |
| Package Type 封装类型 | 2520-SMD |
| Current Consumption 电流消耗 | 7mA |
| Operating Temperature 工作温度 | -40℃~85℃ |
| Lead Free 无铅 | Yes |
| Mounting Style 安装方式 | Surface Mount |
| Packaging 包装 | Tape and Reel |
| 编码 | 品牌 | 系列 | 类型 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| ECS-2520S33-250-FN-TR | ECS | ECS-2520S | XO | 25MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-160-FN-TR | ECS | ECS-2520S | XO | 16MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S18-260-FN-TR |
ECS |
ECS-2520S | XO | 26MHz | HCMOS | 1.8V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-240-FN-TR | ECS | ECS-2520S | XO | 24MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-500-FN-TR | ECS | ECS-2520S | XO | 50MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-200-FN-TR | ECS | ECS-2520S | XO | 20MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-120-FN-TR | ECS | ECS-2520S | XO | 12MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S18-250-FN-TR | ECS | ECS-2520S | XO | 25MHz | HCMOS | 1.8V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-100-FN-TR | ECS | ECS-2520S | XO | 10MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-260-FN-TR | ECS | ECS-2520S | XO | 26MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-400-FN-TR | ECS | ECS-2520S | XO | 40MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S18-240-FN-TR | ECS | ECS-2520S | XO | 24MHz | HCMOS | 1.8V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-320-FN-TR | ECS | ECS-2520S | XO | 32MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-240-FN-TR | ECS | ECS-2520S | XO | 24MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-250-FN-TR | ECS | ECS-2520S | XO | 25MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-050-FN-TR | ECS | ECS-2520S | XO | 5MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-440-FN-TR | ECS | ECS-2520S | XO | 44MHz | HCMOS | 3.3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-050-FN-TR | ECS | ECS-2520S | XO | 5MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-100-FN-TR | ECS | ECS-2520S | XO | 10MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-120-FN-TR | ECS | ECS-2520S | XO | 12MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-160-FN-TR | ECS | ECS-2520S | XO | 16MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-200-FN-TR | ECS | ECS-2520S | XO | 20MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-240-FN-TR | ECS | ECS-2520S | XO | 24MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-250-FN-TR | ECS | ECS-2520S | XO | 25MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-260-FN-TR | ECS | ECS-2520S | XO | 26MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-320-FN-TR | ECS | ECS-2520S | XO | 32MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-400-FN-TR | ECS | ECS-2520S | XO | 40MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-440-FN-TR | ECS | ECS-2520S | XO | 44MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S30-500-FN-TR | ECS | ECS-2520S | XO | 50MHz | HCMOS | 3V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-050-FN-TR | ECS | ECS-2520S | XO | 5MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-100-FN-TR | ECS | ECS-2520S | XO | 10MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-120-FN-TR | ECS | ECS-2520S | XO | 12MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-160-FN-TR | ECS | ECS-2520S | XO | 16MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-200-FN-TR | ECS | ECS-2520S | XO | 20MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-260-FN-TR | ECS | ECS-2520S | XO | 26MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-320-FN-TR | ECS | ECS-2520S | XO | 32MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-400-FN-TR | ECS | ECS-2520S | XO | 40MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S25-440-FN-TR | ECS | ECS-2520S | XO | 44MHz | HCMOS | 2.5V | ±10ppm | -40℃~85℃ |
| ECS-2520S18-050-FN-TR | ECS | ECS-2520S | XO | 5MHz | HCMOS | 1.8V | ±10ppm | -40℃~85℃ |
| ECS-2520S18-440-FN-TR | ECS | ECS-2520S | XO | 44MHz | HCMOS | 1.8V | ±10ppm | -40℃~85℃ |
| ECS-2520S33-050-EN-TR | ECS | ECS-2520S | XO | 5MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-100-EN-TR | ECS | ECS-2520S | XO | 10MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-120-EN-TR | ECS | ECS-2520S | XO | 12MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-160-EN-TR | ECS | ECS-2520S | XO | 16MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-200-EN-TR | ECS | ECS-2520S | XO | 20MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-240-EN-TR | ECS | ECS-2520S | XO | 24MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-250-EN-TR | ECS | ECS-2520S | XO | 25MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-260-EN-TR | ECS | ECS-2520S | XO | 26MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-320-EN-TR | ECS | ECS-2520S | XO | 32MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
| ECS-2520S33-400-EN-TR | ECS | ECS-2520S | XO | 40MHz | HCMOS | 3.3V | ±15ppm | -40℃~85℃ |
